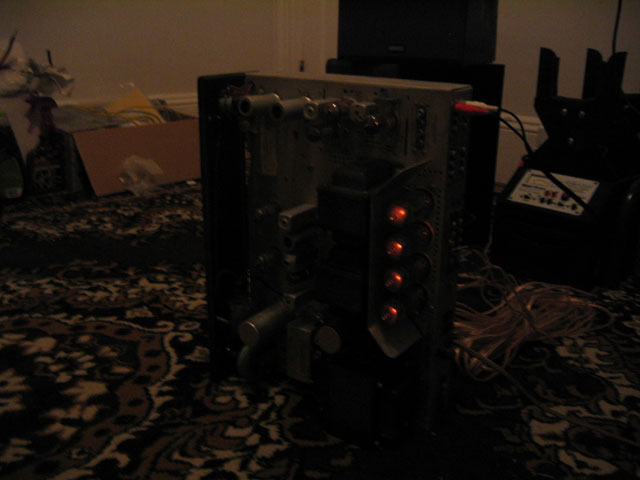

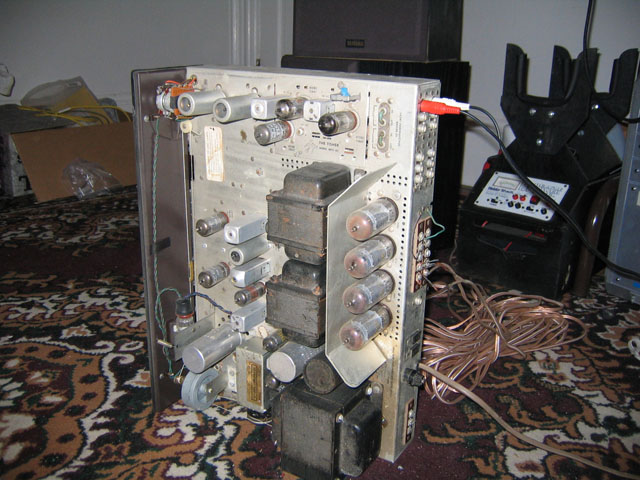

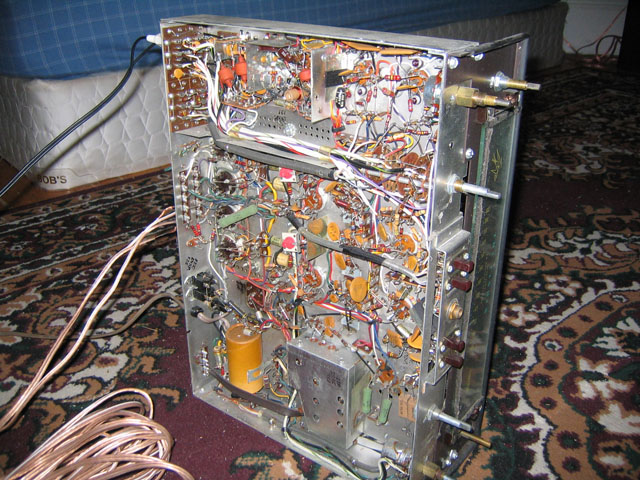

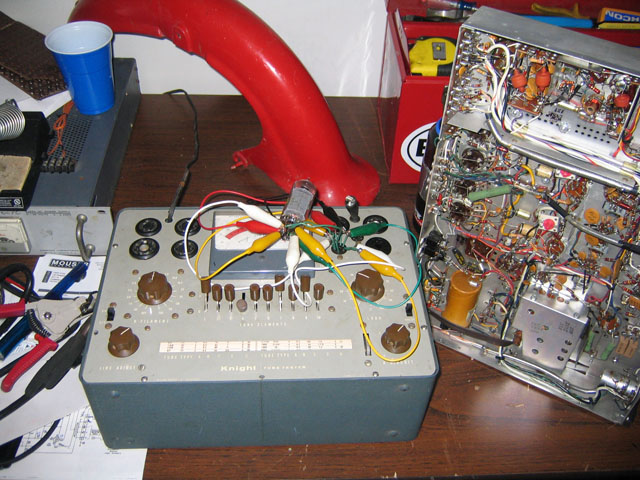

Fisher 400 Stereo Amplifier Update: 9/28/05 I have mostly finished restoring the Fisher. I have made the following mods: Replaced all small mylar and electrolytic caps Replaced the old rectiifer Replaced the old power diodes Replaced the old power chord and grounded chassis Added resistors to the cathodes of the output tubes Removed a bias shunting resistor Added 2A inrush current limiter (ICL) Here are some documents that helped me through the process: Fisher 400 Brochure Fisher 400 Manual Fisher Doc Restore Instructions Here's my replacement parts list: Xicon 10ohm, 1/4watt, metal film resistors [pkg of 10] - Mouser #271-10 (cathode resistors) Sprague Atom 10uF, 150V electrolytic cap [1] - BOI Audioworks (replaces C55) Sprague Atom 100uF, 100V electrolytic cap [1] - BOI Audioworks (replaces C74) Sprague Atom 1000uF, 50V electrolytic cap [2] - Newark InOne #18F2966 (replaces C78A, C78B) Orange Drop .0047uF, 400V polyester cap [1] - Mouser #75-225P400V0.0047 (replaces C214) CDE DME .01uF, 630V polyester cap [2] - Mouser #5989-630V.01-F (replaces C80, C83) CDE DME .047uF, 250V polyester cap [2] - Mouser #5989-250V.047 (replaces C221, C222) CDE DME 0.1uF, 1000V polyester cap [1] - Mouser #5989-1KV0.1-F (replaces C47) CDE DME .022uF, 1000V polyester cap [2] - Mouser #5989-1KV.022-F (replaces C19, C20) CDE DME .047uF, 400V polyester cap [2] - Mouser #5989-400V.047 (replaces C48, C49) CDE DME .047uF, 630V polyester cap [2] - Mouser #5989-630V.047-F (replaces C63, C65) CDE DME .047uF, 1000V polyester cap [2] - Mouser #5989-1KV.047-F (replaces C62, C64) Diodes Inc. 3A, 1000V diode [2] - Mouser #621-S3M (replaces CR1, CR2) Rectron 3A, 1000V bridge rectifier [1] - Mouser #583-BR310 (replaces CR3) Volex 16AWG, shielded, 3 conductor AC power cable [1] - Mouser #686-17614 (replaces power chord) Heyco strain relief bushing [1] - Mouser #836-1200 (needed for power chord) Ametherm ICL, 2A, 220ohm [1] - Newark InOne #72J6784 Sylvania? 6V, 3AG type fuse lamp [2] - All Electronics Corp. #LPFS-6 (replaces display lamps I1, I2) The manual has the entire parts list and schematic. However, it's for the second generation of receivers (which I have). The Fisher Doc instructions are for the first generation but will still provide a general guide of what needs to be done if you have a second generation. You can find almost all of the components at Mouser or Newark InOne. Using the Knight Tube Tester to test one of the 7868 outputs: Yes, I finally have a proper stereo. The magic radio eye even works. And, yeah, those output tubes, all original Fisher. Horror! And the finale...
